What Is a Diaphragm Pump?

Sep. 26, 2023

A diaphragm pump, also known as a membrane pump or a pneumatic diaphragm pump, is a type of positive displacement pump that uses a flexible diaphragm to move fluid. These pumps are commonly used for various industrial, chemical, and fluid transfer applications due to their ability to handle a wide range of fluids, including corrosive and abrasive substances. Here are the key features and components of a diaphragm pump:

  • 1. Diaphragm: The diaphragm is the central component of the pump and is typically made of a flexible material such as rubber, thermoplastic, or elastomer. It separates the fluid being pumped from the mechanical components of the pump. As the diaphragm flexes, it creates suction and discharge actions, drawing fluid into and expelling it from the pump chamber.

  • 2. Pump Chambers: Diaphragm pumps consist of two pump chambers, usually labeled as the suction side and the discharge side. These chambers are separated by the diaphragm. When the diaphragm flexes, it creates a volume change within these chambers, causing fluid to move through the pump.

  • 3. Inlet and Outlet Ports: Diaphragm pumps have dedicated inlet and outlet ports to facilitate the entry and exit of fluid. The inlet port allows the pump to draw in the fluid, while the outlet port discharges it.

  • 4. Check Valves: Check valves (one-way valves) are typically located at both the inlet and outlet ports to ensure that fluid flows in one direction only. These valves prevent backflow and maintain the flow direction as the diaphragm cycles.

  • 5. Actuator: The diaphragm is actuated or moved by an external mechanism. This mechanism can be pneumatic (using compressed air), hydraulic, or mechanical, depending on the type of diaphragm pump. Pneumatic diaphragm pumps are particularly common because they are self-priming and can handle viscous and abrasive fluids.

  • 6. Pulsation Dampeners: In some applications, pulsation dampeners are added to the pump system to smooth out the flow, reducing the pulsating effect that diaphragm pumps can exhibit.

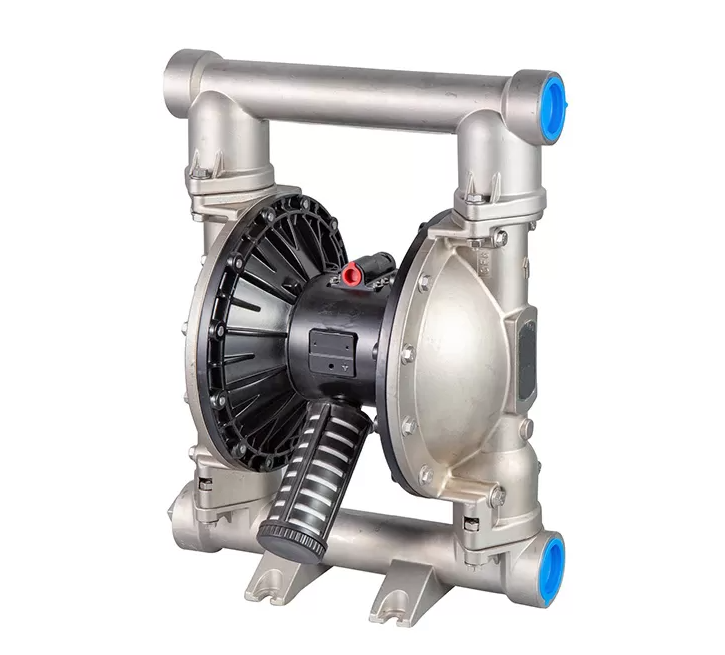

    Diaphragm Pump

Diaphragm Pump

Key Characteristics and Advantages of Diaphragm Pumps:

  • Self-Priming: Diaphragm pumps are capable of self-priming, meaning they can start pumping without the need for external priming.

  • Versatility: They can handle a wide range of fluids, including corrosive, abrasive, and viscous materials. This makes them suitable for various industries, such as chemical processing, wastewater treatment, pharmaceuticals, and food processing.

  • Containment: Diaphragm pumps offer excellent containment because the fluid being pumped is completely isolated from the pump's mechanical components. This is crucial for handling hazardous or toxic substances.

  • Simple Maintenance: Diaphragm pumps are relatively easy to maintain and repair since they have fewer moving parts compared to some other pump types.

  • Variable Flow Rates: Flow rates can often be adjusted by modifying the air pressure or stroke length, allowing for precise control over fluid transfer.

  • Reliable and Durable: Diaphragm pumps are known for their reliability and durability, particularly in challenging environments.

While diaphragm pumps offer many advantages, they also have limitations, including pulsating flow, limited efficiency at high pressures, and the need for periodic diaphragm replacement, especially when handling abrasive substances. Despite these limitations, diaphragm pumps are valuable tools in a wide range of applications where their unique capabilities are essential.
