Sanitary Diaphragm Pump (FDA) Sanitary Diaphragm Pump (FDA)

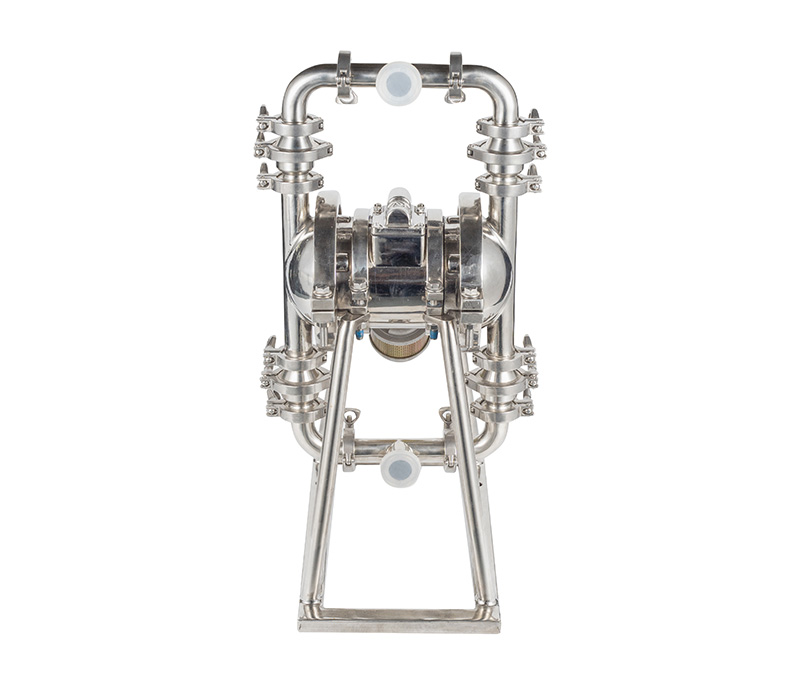

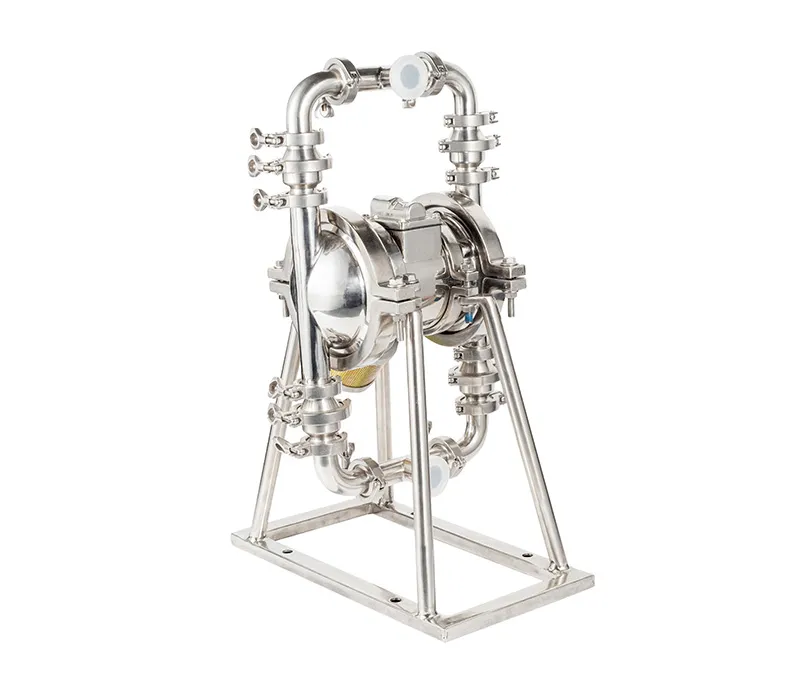

1 Inch Sanitary Pneumatic Diaphragm Pump (FDA)

ModelGK-FDA25 Sanitary Pneumatic Diaphragm Pump
Max. Working Pressure 72Psi (0.5Mpa, 5bar)
Max.Flow Rate 32gpm (120 Lpm)
Max.Reciprocating Speed 276cpm
Max. Suction Height(Dry Sucking) 5m
Max.Permitted Grain 4mm
Max.Air Consumption 18L/s
Weight Stainless Steel 34kg

Product Description

The GK-FDA 25 Sanitary Pneumatic Diaphragm Pump: The Perfect Solution for Your Sanitary Pumping Needs

Are you in search of a reliable and efficient solution for your sanitary pumping requirements? Look no further than the GK-FDA 25 Sanitary Pneumatic Diaphragm Pump, brought to you by GIN KAI TECHNOLOGY (SHANGHAI) CO., LTD (GK). With our expertise in manufacturing air operated diaphragm pumps, electric diaphragm pumps, and piston pumps, we have developed a high-quality, state-of-the-art sanitary diaphragm pump that surpasses the competition.

Features and Benefits

Superior Quality: At GK, we pride ourselves on delivering products of the highest quality. The GK-FDA 25 is constructed with stainless steel, ensuring durability and resistance to corrosion. This robust design guarantees a long lifespan and reliable operation, even in demanding sanitary applications.

Unmatched Performance: Our sanitary diaphragm pump offers an impressive maximum working pressure of 72Psi (0.5Mpa, 5bar). With a maximum flow rate of 32gpm (120 Lpm) and a reciprocating speed of 276cpm, it delivers exceptional pumping capacity, allowing you to efficiently handle a wide range of fluids and viscosities.

Versatile Applications: The GK-FDA 25 is designed to handle various sanitary applications effectively. Whether you need to transfer fluids, handle food and beverages, pharmaceuticals, or other sensitive materials, our pump ensures the highest level of cleanliness, hygiene, and product integrity.

Easy to Use and Maintain: Our pump features a user-friendly design, making installation and operation hassle-free. The compact size and lightweight nature of the GK-FDA 25 facilitate easy handling and portability. Additionally, its simple structure allows for easy maintenance, reducing downtime and increasing productivity.

Enhanced Safety: Our sanitary diaphragm pump adheres to stringent safety standards. With a maximum suction height of 5m (dry sucking) and the ability to handle 4mm permitted grain size, it ensures efficient and safe pumping operations, minimizing the risk of clogs or unexpected disruptions.

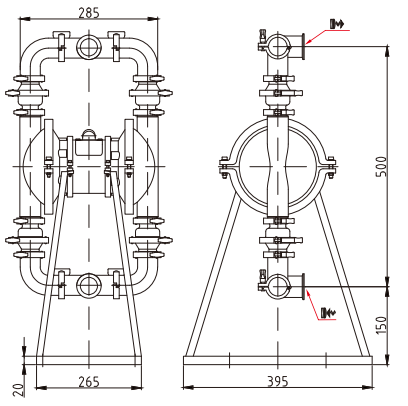

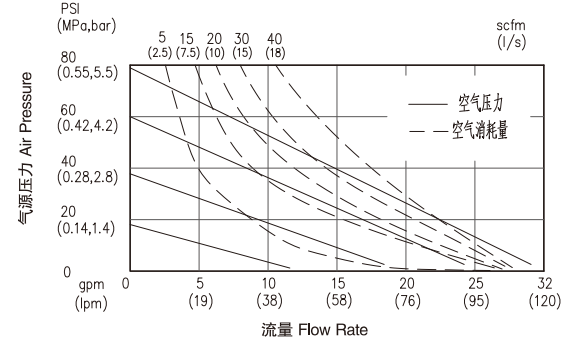

Installation Dimensions and Performance Curves

1 Inch Sanitary Pneumatic Diaphragm Pump (FDA)                                          1 Inch Sanitary Pneumatic Diaphragm Pump (FDA)

Contact Us

Thank you for your interest in GIN KAI TECHNOLOGY (SHANGHAI) CO., LTD (GK) and our sanitary diaphragm pumps. We would be delighted to assist you further and address any inquiries you may have.

Please feel free to reach out to us via phone or email, and our dedicated team will be ready to provide you with the information and support you need. Whether you have questions about our products, require technical assistance, or wish to discuss a potential partnership, we are here to help.

We value your business and look forward to the opportunity to serve you. Don't hesitate to contact us, and let us demonstrate how our GK-FDA 25 Sanitary Pneumatic Diaphragm Pump can meet your specific requirements.
