How Does a Diaphragm Pump Work?

Jan. 15, 2024
How Does a Diaphragm Pump Work?

Diaphragm pumps, also known as membrane pumps, are versatile and efficient devices used for fluid transfer in various industries. Understanding the working mechanism of a diaphragm pump is essential to appreciate its applications and advantages. In this article, we explore the intricate process behind the functionality of a diaphragm pump.

1. Reciprocating Diaphragm

At the core of a diaphragm pump is a flexible diaphragm, typically made of materials such as rubber, Teflon, or thermoplastic elastomers. This diaphragm is placed within the pump chamber, creating a barrier between the liquid being pumped and the mechanical components of the pump.

2. Inlet and Outlet Valves

Diaphragm pumps have inlet and outlet valves connected to the pump chamber. These valves ensure a unidirectional flow of fluid through the pump. The inlet valve allows the liquid to enter the pump chamber, while the outlet valve facilitates its exit. The valves are crucial in maintaining the desired flow direction and preventing backflow.

3. Reciprocating Action

The diaphragm undergoes a reciprocating or pulsating motion driven by an external mechanism, often a motor or pneumatic system. As the diaphragm moves, it creates changes in pressure within the pump chamber. When the diaphragm contracts, it reduces the volume of the chamber, causing an increase in pressure and pushing the fluid out through the outlet valve.

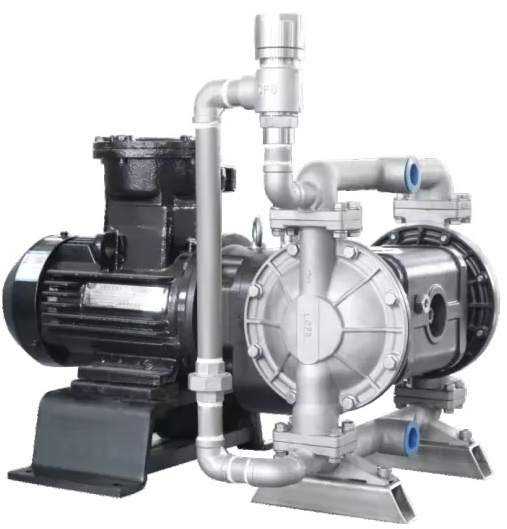

1/2 Inch Stainless Steel Electric Diaphragm Pump (New Energy)

1/2 Inch Stainless Steel Electric Diaphragm Pump (New Energy)

4. Suction and Discharge Phases

The diaphragm pump operates in two main phases: suction and discharge. During the suction phase, the diaphragm expands, creating a vacuum that draws the fluid into the pump chamber through the inlet valve. In the discharge phase, the diaphragm contracts, pressurizing the fluid and forcing it out through the outlet valve to its intended destination.

5. Versatility in Materials

Diaphragm pumps are suitable for a wide range of fluids, including corrosive, abrasive, and viscous substances. The choice of diaphragm material ensures compatibility with the specific characteristics of the pumped fluid. This versatility makes diaphragm pumps ideal for various industries, including chemical processing, pharmaceuticals, and wastewater treatment.

Frequently Asked Questions

Q: What are the common applications of diaphragm pumps?

Diaphragm pumps find applications in chemical processing, pharmaceutical manufacturing, water treatment, and other industries where precise and reliable fluid transfer is essential.

Q: How do diaphragm pumps ensure safety in handling fluids?

The design of diaphragm pumps prevents leaks and spills, enhancing safety when handling hazardous or volatile fluids. The diaphragm acts as a reliable barrier, minimizing the risk of exposure.

Q: Can diaphragm pumps handle high-viscosity fluids?

Yes, diaphragm pumps are capable of handling high-viscosity fluids due to their pulsating action, which effectively moves even thick substances through the pump chamber.

In summary, the intricate working mechanism of a diaphragm pump involves the reciprocating motion of a flexible diaphragm, creating suction and discharge phases to efficiently transfer fluids. The versatility of diaphragm pumps makes them a reliable choice for various industries with diverse fluid handling needs.
