How Do Pneumatic Piston Pumps Work?

Apr. 24, 2024

Understanding the functioning of pneumatic piston pumps is essential for various industrial applications. These pumps utilize air pressure to generate mechanical motion, making them versatile and efficient tools for pumping liquids and other fluids. Let's delve into the intricacies of pneumatic piston pumps and explore their working principles.

What are pneumatic piston pumps?

Pneumatic piston pumps are devices that use compressed air to move a piston within a cylinder. This movement creates a vacuum or pressure differential, allowing the pump to draw in and expel fluids. These pumps are commonly used in industries where precise fluid control and high reliability are required.

Working principle of pneumatic piston pumps

The operation of pneumatic piston pumps relies on the reciprocating motion of a piston within a cylinder. Here's how it works:

1. Compressed air supply: Compressed air is supplied to the pump through an inlet port. The pressure of the air can be adjusted to control the flow rate and pressure of the pumped fluid.

2. Piston movement: When compressed air is directed into the cylinder behind the piston, it pushes the piston forward, creating a positive pressure chamber behind it. As the piston moves forward, it displaces the fluid in the pump chamber.

3. Fluid intake: As the piston moves forward, it creates a vacuum in the pump chamber in front of it. This vacuum causes fluid to be drawn into the chamber through an inlet valve.

4. Piston retraction: Once the piston reaches the end of its stroke, the direction of the compressed air flow is reversed. Air is directed into the cylinder in front of the piston, causing it to retract. As the piston moves backward, the fluid in the pump chamber is expelled through an outlet valve.

5. Continuous operation: Pneumatic piston pumps can operate continuously, with the reciprocating motion of the piston creating a steady flow of fluid. The flow rate and pressure can be controlled by adjusting the air pressure and the stroke length of the piston.

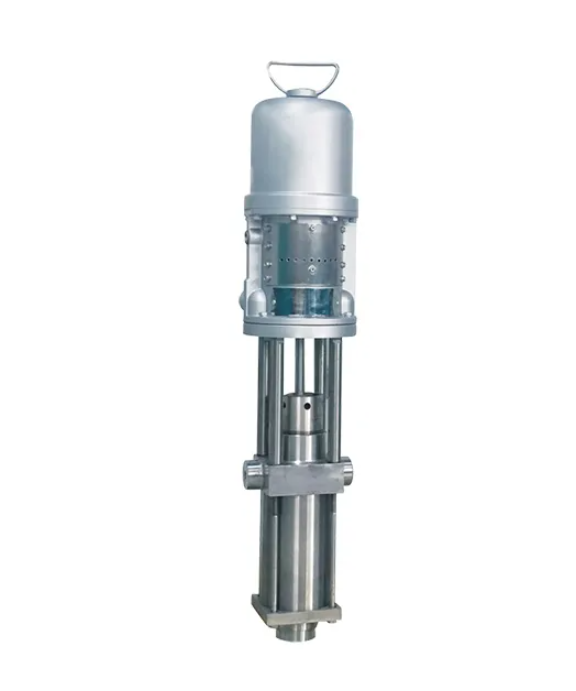

Piston Pump

Piston Pump

Applications of pneumatic piston pumps

Pneumatic piston pumps find applications in various industries, including:

- Automotive manufacturing: These pumps are used for dispensing lubricants, adhesives, and other fluids in assembly processes.

- Chemical processing: Pneumatic piston pumps are employed for transferring and dosing chemicals in manufacturing and laboratory settings.

- Food and beverage production: These pumps are utilized for pumping ingredients, flavorings, and sauces in food processing facilities.

- Printing and packaging: Pneumatic piston pumps are used for ink delivery and packaging adhesive application in printing and packaging machinery.

Questions and Answers

Here are some common questions people have about pneumatic piston pumps:

Q: How do pneumatic piston pumps differ from other types of pumps?

A: Unlike hydraulic or electric pumps, pneumatic piston pumps use compressed air to generate mechanical motion, making them suitable for applications where electricity or hydraulic fluid is not readily available or desired.

Q: What are the advantages of using pneumatic piston pumps?

A: Pneumatic piston pumps offer precise fluid control, high reliability, and suitability for use in explosive or hazardous environments where electrical or hydraulic equipment may pose safety risks.

Q: How do you maintain pneumatic piston pumps?

A: Maintenance of pneumatic piston pumps typically involves regular inspection of seals, valves, and pistons, as well as lubrication of moving parts. It's essential to follow manufacturer guidelines and schedule routine maintenance to ensure optimal performance and longevity of the pumps.

Overall, pneumatic piston pumps play a crucial role in various industrial processes, offering efficient fluid handling solutions with precise control and reliability.
