Special Pump Special Pump

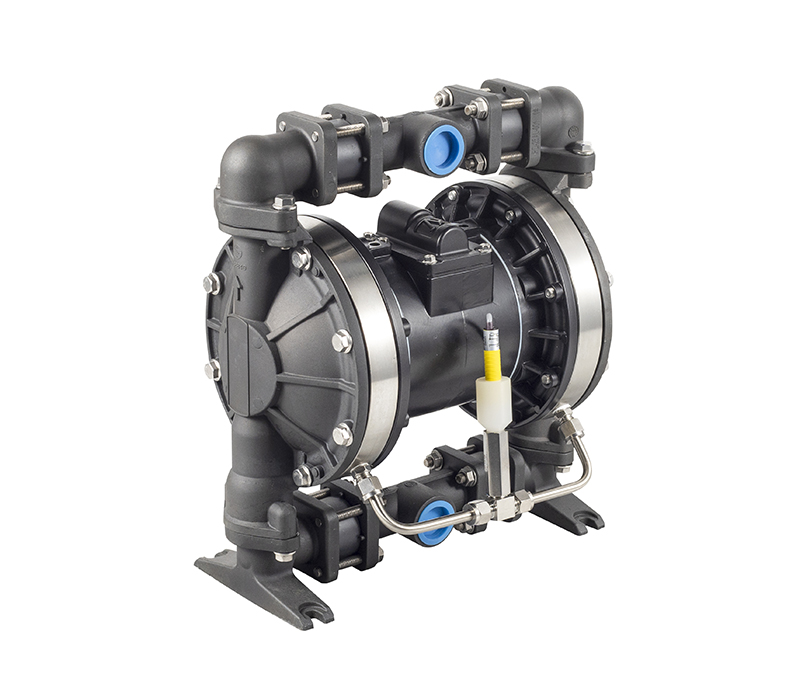

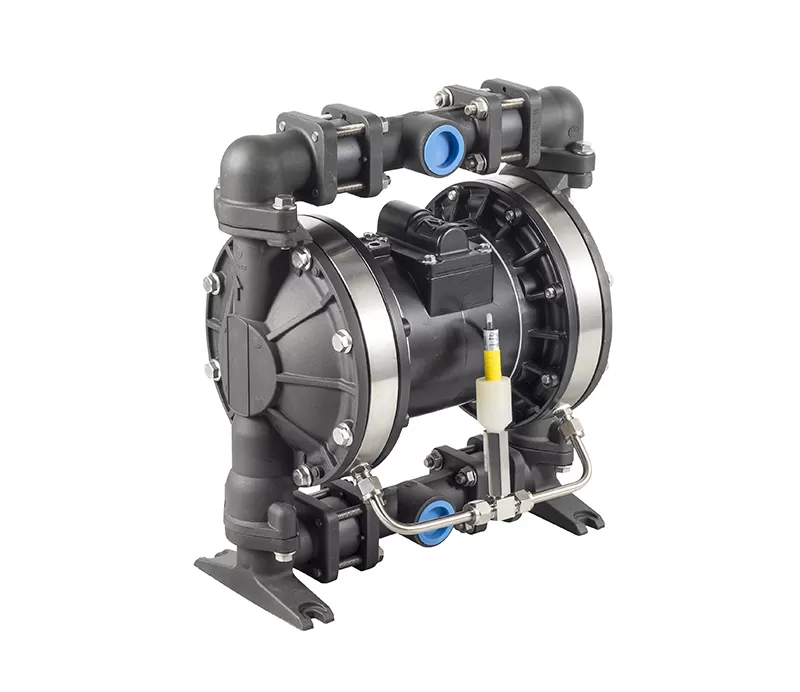

1 Inch Diaphragm Pump with Leakage Detective Device (Metal)

ModelGK25 Diaphragm Pump with Leakage Detective Device (Metal)
Max.Working Pressure:120psi (0.84Mpa, 8.4bar)
Max.Flow Rate: 40 gpm (150 lpm)
Max.Reciprocating Speed: 276cpm
Max. Suction Height(Dry Sucking): 5m
Max.Permitted Grain: 0.16in. (4mm)
Max.Air Consumption: 45scfm (22.5L/s)
Air Inlet Size: 1/2in.
Air Outlet Size: 3/4 in.
Fluid Inlet Size: 1 in.
Fluid Outlet Size: 1 in.
Weight: Aluminum pump 13.9kg; Stainless steel pump 20.3kg


Technical Specification

Introducing the Special Pump Series: GK25 Diaphragm Pump with Leakage Detective Device (Metal)

Are you looking for a reliable and high-performance diaphragm pump for your industrial needs? Look no further than GIN KAI (GK) `s groundbreaking GK25 Diaphragm Pump with Leakage Detective Device. With over 17 years of experience in manufacturing pneumatic diaphragm pumps, GK has established itself as a leader in the industry, continuously innovating and developing top-of-the-line products.

Our GK25 Diaphragm Pump with Leakage Detective Device is designed, a cutting-edge feature that ensures optimal safety and reliability in your operations. This device allows for early detection of potential leaks, preventing costly damage and downtime.

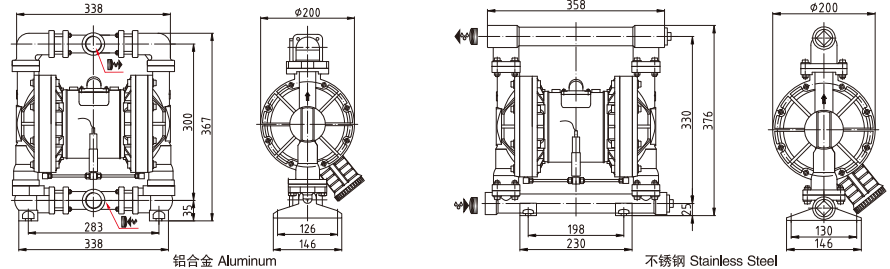

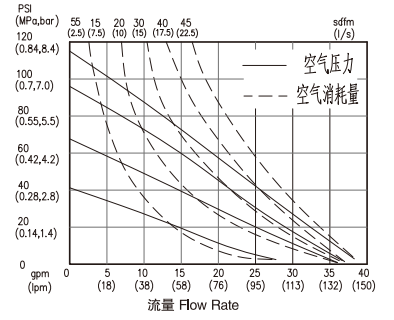

Installation Dimensions and Performance Curves

With its robust construction and advanced design, the GK25 Diaphragm Pump is built to withstand demanding industrial environments. The metal construction ensures durability and longevity, allowing for continuous and reliable operation even in the harshest conditions.

1 Inch Diaphragm Pump with Leakage Detective Device (Metal)1 Inch Diaphragm Pump with Leakage Detective Device (Metal)

Company Advantages

Our pump's exceptional performance is matched by its versatility. Whether you need to handle corrosive chemicals, abrasive slurries, viscous fluids, or other challenging substances, the GK25 Diaphragm Pump is up to the task. Its precise engineering and high-quality materials guarantee efficient and consistent pumping, minimizing maintenance requirements and maximizing productivity.

At GK, we understand the importance of customization to meet your specific needs. Our products can be OEM customized according to your requirements, ensuring a perfect fit for your application. We also adhere to strict quality standards, as evidenced by our multiple certifications, including ISO14001, ISO9001, ATEX, and FDA.

Join the ranks of satisfied customers who have benefited from our reliable and innovative products. Our diaphragm pumps have garnered positive feedback from renowned companies worldwide. With our extensive export experience, we have successfully delivered our products to Asia, the Middle East, New Zealand, and Australia.

When it comes to superior quality, advanced technology, and unmatched reliability, GIN KAI TECHNOLOGY (SHANGHAI) CO., LTD (GK) stands out from the competition. Invest in the GK25 Diaphragm Pump with Leakage Detective Device and experience the difference it can make in your industrial operations.

Contact us today to learn more about our products, customization options, and how our pump solutions can enhance your business. Partner with GK and take your pumping efficiency to new heights.
