New Energy Application Pumps New Energy Application Pumps

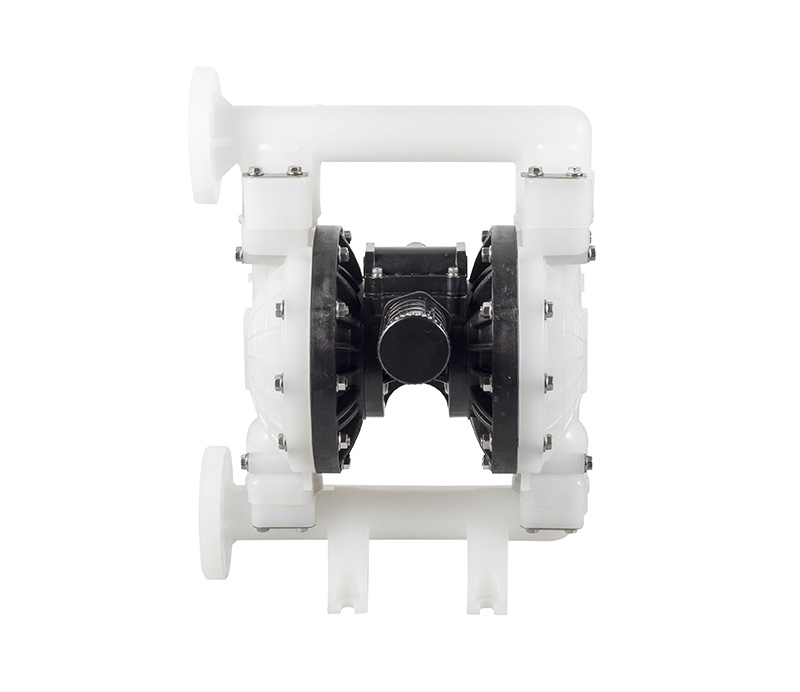

1.5 Inches Full Polypropylene Diaphragm Pump

ModelGK40 Full Polypropylene Diaphragm Pump
Max.Working Pressure120psi (0.84Mpa, 8.4bar)
Max.Flow Rate90gpm (340 pm)
Max.Reciprocating Speed200cpm
Max. Suction Height(Dry Sucking)5m
Max.Permitted Grain0.2in.(5mm)
Max.Air Consumption80scim (40L/s)
Air Inlet Size1/2in.
Air Outlet Size3/4in.
Fluid Inlet Size1 1/2 in.
Fluid Outlet Size1 1/2 in.
Weight

Thread connect: PVDF:20kg,PP 14kg,

Flange connect: PVDF:20.2kg,PP 15.00kg

Share:

Product Description

Industries InvolvedApplications
Petrochemical IndustryCrude oil, heavy oil, grease, mud, sludge, etc.
Chemical InsdutryAcids, alkali, solvents, suspended solids, decentralized system
Wastewater TreatmentLime milk, Soft Sediments, Sewage, Chemicals, Wastewater
Electronic IndustrySolvents, electroplating fluid, cleaning fluid, sulfuric acid, nitric acid, waste acids, corrosive acids, polishing solutions / liquid
Nuclear Power IndustryPipeline system, nuclear station lubrication system and common island(CI) wastewater treatment
Automobile IndustryPolishing emulsions, oils, coolants, automotive priming, oil emulsion paints, varnishes, varnish additives, degreasers / degreasing fluid, paints, etc.
Pharmaceutical IndustrySolvents, acids, alkalis, plant extracts, ointments / cream, plasma and other pharmaceutical liquids
Ceramic IndustryMud, Slurry pottery, Lime milk, Clay Slurry
New Energy IndustryFluid transportation, sewage discharge, solid-liquid separation, etc.
Metallurgical, Casting and Dyeing IndustryMetal slurries, hydroxide and carbide slurries, dust washing slurries, etc.
Ink Industry / Painting Industry /Coating IndustryResins, Solvents, Colorants/Coloring Agent, Paints, etc.
Food and Beverage IndustryFood - Liquid semi-solid, chocolate, salt water / brine, vinegar, syrup, vegetable oil, soybean oil, honey, animal blood.
Beverage - Yeast, syrups, concentrates, gas-liquid mixtures, wines, fruit juices, corn pulp / corn steep liquor, etc.
Cosmetic IndustryDetergent, Shampoo, Lotion, Emulsion, camphor ice / Hand Cream, Surface active agent / Surfactant
Mining IndustryCoal slurry, magma, mud, mortar, explosive slurry, lubricating oil / lubricant, etc.
Paper IndustryBinder / adhesives, resin, paint, ink, pigment, hydrogen peroxide, etc.
Textile IndustryChemical dyes, resins, glues, etc.
Construction IndustryGrout, ceramic tile adhesive, rock slurry, ceiling paint, etc.
Furniture Industryadhesives, varnishes, decentralized system / dispersions, solvents, color agent / colorants, sapwood glue, epoxy resins, starch binders
Shipbuilding Industrywater, wastewater, Residual oil, brine
Electric Power IndustrySolvents, electroplating fluid, cleaning fluid, sulfuric acid, nitric acid, waste acids, corrosive acids, polishing solutions / liquid
Environmental Protection IndustryWastewater, Recycled water, Chemical solution (wastewater treatment)
Coal IndustryIt is responsible for spraying water during coal mining to remove dust and reduce the temperature of mining tools.
Biotechnology IndustryAcids, alkali, solvents, suspended solids, decentralized system
