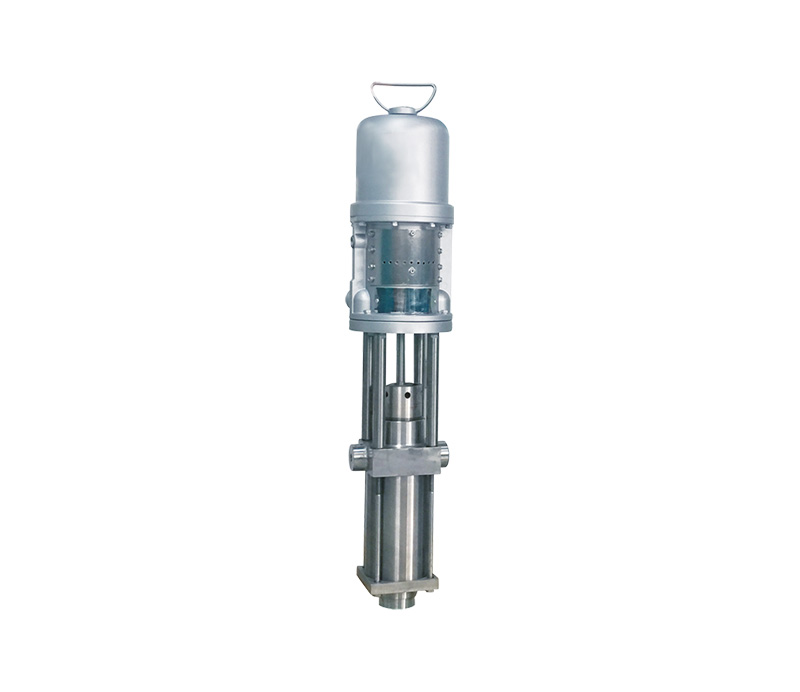

| Model | GK5:1 Pneumatic Piston Pump |
|---|---|
| Max. Working Pressure | 725psi (5.0Mpa, 50bar) |
| Max.Flow Rate | 14.4 gpm (15 lpm) |
| Max.Suction Lift | 6m |
| Max.Particle Allowed | 3.0mm |
| Fluid Outlet Size | 1 in. |
| Fluid Inlet Size | 1-1/2 in. |
| Max.Air Consumption | 34scfm (17L/s) |
| Air Inlet Size | 1/2 in. |
| Connection Type | Female Thread |
| Body Material | 304/316（SS304/SS316） |
| Ratio | 5:1 |
Product Description
| Industries Involved | Applications |
| Petrochemical Industry | Crude oil, heavy oil, grease, mud, sludge, etc. |
| Chemical Insdutry | Acids, alkali, solvents, suspended solids, decentralized system |
| Wastewater Treatment | Lime milk, Soft Sediments, Sewage, Chemicals, Wastewater |
| Electronic Industry | Solvents, electroplating fluid, cleaning fluid, sulfuric acid, nitric acid, waste acids, corrosive acids, polishing solutions / liquid |
| Nuclear Power Industry | Pipeline system, nuclear station lubrication system and common island(CI) wastewater treatment |
| Automobile Industry | Polishing emulsions, oils, coolants, automotive priming, oil emulsion paints, varnishes, varnish additives, degreasers / degreasing fluid, paints, etc. |
| Pharmaceutical Industry | Solvents, acids, alkalis, plant extracts, ointments / cream, plasma and other pharmaceutical liquids |
| Ceramic Industry | Mud, Slurry pottery, Lime milk, Clay Slurry |
| New Energy Industry | Fluid transportation, sewage discharge, solid-liquid separation, etc. |
| Metallurgical, Casting and Dyeing Industry | Metal slurries, hydroxide and carbide slurries, dust washing slurries, etc. |
| Ink Industry / Painting Industry /Coating Industry | Resins, Solvents, Colorants/Coloring Agent, Paints, etc. |
| Food and Beverage Industry | Food - Liquid semi-solid, chocolate, salt water / brine, vinegar, syrup, vegetable oil, soybean oil, honey, animal blood. Beverage - Yeast, syrups, concentrates, gas-liquid mixtures, wines, fruit juices, corn pulp / corn steep liquor, etc. |
| Cosmetic Industry | Detergent, Shampoo, Lotion, Emulsion, camphor ice / Hand Cream, Surface active agent / Surfactant |
| Mining Industry | Coal slurry, magma, mud, mortar, explosive slurry, lubricating oil / lubricant, etc. |
| Paper Industry | Binder / adhesives, resin, paint, ink, pigment, hydrogen peroxide, etc. |
| Textile Industry | Chemical dyes, resins, glues, etc. |
| Construction Industry | Grout, ceramic tile adhesive, rock slurry, ceiling paint, etc. |
| Furniture Industry | adhesives, varnishes, decentralized system / dispersions, solvents, color agent / colorants, sapwood glue, epoxy resins, starch binders |
| Shipbuilding Industry | water, wastewater, Residual oil, brine |
| Electric Power Industry | Solvents, electroplating fluid, cleaning fluid, sulfuric acid, nitric acid, waste acids, corrosive acids, polishing solutions / liquid |
| Environmental Protection Industry | Wastewater, Recycled water, Chemical solution (wastewater treatment) |
| Coal Industry | It is responsible for spraying water during coal mining to remove dust and reduce the temperature of mining tools. |
| Biotechnology Industry | Acids, alkali, solvents, suspended solids, decentralized system |
