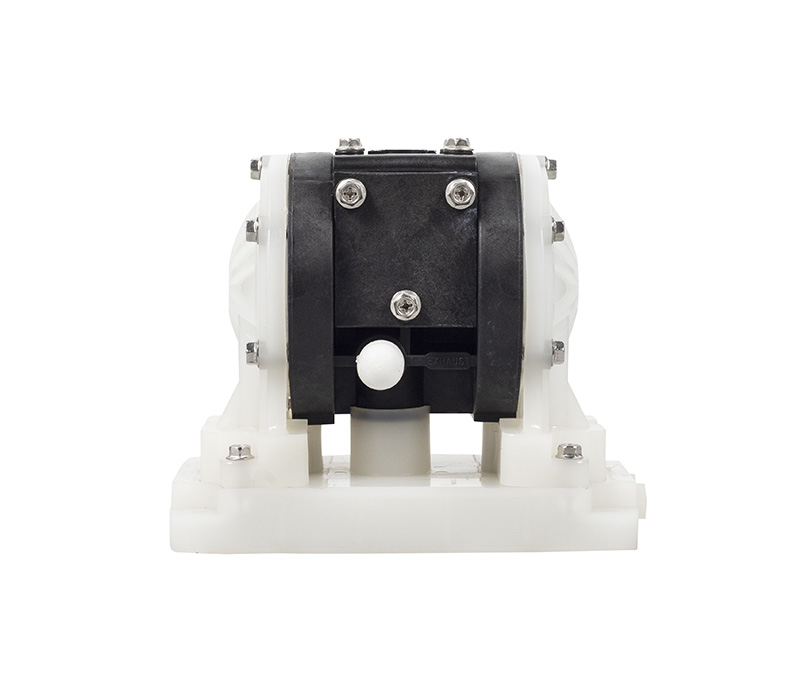

1/4 Inch PVDF/Full Polypropylene Diaphragm Pump

ModelGK06 PP/PVDF Diaphragm Pump
Max.Working Pressure100psi (0.7Mpa,7bar)
Max.Flow Rate5.0 gpm (19 lpm)
Max.Reciprocating Speed320cpm
Max. Suction Height(Dry Sucking)3m
Max.Permitted Grain0.06min (1.5mm)
Max. Air Consumption7.0 scfm (3.5L/s)
Air lnlet Size1/4 in.
Air Outlet Size1/4 in.
Fluid Inlet Size1/4 in.
Fluid Outlet Size1/4 in.
Weight

PP pump: 1.1kg

PVDF pump: 1.5kg

Share:

Products Applications

PVDF Diaphragm Pump

Introducing the GK06 PP/PVDF Diaphragm Pump, the perfect solution for all your fluid transfer needs! This pump is available in both PP and PVDF models, making it suitable for use with a variety of liquids. The PVDF diaphragm pump is ideal for use with corrosive liquids, while the PP diaphragm pump is perfect for less aggressive fluids.

With a maximum working pressure of 100psi (0.7Mpa,7bar) and a maximum flow rate of 5.0 gpm (19 lpm), this pump is designed to handle even the most demanding applications. It also features a maximum reciprocating speed of 320cpm and a maximum suction height of 3m (dry sucking), making it highly efficient and reliable.

The GK06 PP/PVDF Diaphragm Pump is available in both 1/4 PVDF diaphragm pumps and PVDF air operated diaphragm pumps, providing you with the flexibility to choose the pump that best meets your specific needs. Additionally, the pump features a maximum permitted grain of 0.06min (1.5mm), ensuring smooth and consistent flow even with larger particles.

This pump is also incredibly easy to use, with air inlet and outlet sizes of 1/4 in. , and fluid inlet and outlet sizes of 1/4 in. Furthermore, with a weight of just 1.1kg (PP pump) or 1.5kg (PVDF pump), the GK06 PP/PVDF Diaphragm Pump is highly portable and can be easily transported to different locations.

In summary, the GK06 PVDF air operated double diaphragm pump is a high-performance pump that is versatile, reliable, and easy to use. Whether you're looking for a PVDF air operated double diaphragm pump or a 1/4 PVDF diaphragm pump, this pump is sure to meet your needs and exceed your expectations. We sell our pvdf diaphragm pump to brand manufacturers, wholesalers, etc. all over the world. Feel free to contact us!


Application

Industries InvolvedApplications
Ink Industry / Painting Industry /Coating IndustryResins, Solvents, Colorants/Coloring Agent, Paints, etc.


Advantages

There are several advantages to using the 1/4 PVDF diaphragm pumps, including:

1. Versatility: The pump is available in both PP and PVDF models, making it suitable for use with a wide range of fluids, including corrosive liquids.

2. High performance: With a maximum working pressure of 100psi, a maximum flow rate of 5.0 gpm, and a maximum reciprocating speed of 320cpm, this pump is designed to handle even the most demanding applications.

3. Ease of use: The pump features air inlet and outlet sizes of 1/4 in., and fluid inlet and outlet sizes of 1/4 in., making it easy to connect to existing systems.

4. Portable: With a weight of just 1.1kg (PP pump) or 1.5kg (PVDF pump), the GK06 PP/PVDF Diaphragm Pump is highly portable and can be easily transported to different locations.

5. Durability: The pump is constructed from high-quality materials, ensuring long-lasting durability and reliability.

6. Low maintenance: The diaphragm design of the pump eliminates the need for oil lubrication, resulting in low maintenance requirements and reduced downtime.

In summary, the GK06 PP/PVDF Diaphragm Pump offers several advantages, including versatility, high performance, ease of use, portability, durability, and low maintenance.


Features

The 1/4 PVDF diaphragm pumps is packed with several features that make it a reliable and efficient fluid transfer solution. Here are some of the key features:

1. Material Options: The pump is available in two models, PP and PVDF, providing options for a variety of fluid transfer applications.

2. High Flow Rate: The pump is capable of achieving a maximum flow rate of 5.0 gpm (19 lpm), making it ideal for high-volume transfer applications.

3. Maximum Working Pressure: With a maximum working pressure of 100psi (0.7Mpa,7bar), this pump is designed to handle even the most demanding applications.

4. Maximum Reciprocating Speed: The pump's maximum reciprocating speed of 320cpm makes it highly efficient and reliable.

5. Maximum Suction Height: The pump can dry suck up to a maximum suction height of 3m, making it suitable for a range of applications.

6. Low Maintenance: The pump's diaphragm design eliminates the need for oil lubrication, resulting in low maintenance requirements and reduced downtime.

7. Easy to Install: The pump features air inlet and outlet sizes of 1/4 in. and fluid inlet and outlet sizes of 1/4 in. , making it easy to connect to existing systems.

8. Lightweight: The PP pump weighs just 1.1kg, while the PVDF pump weighs 1.5kg, making the pump highly portable and easy to move between locations.
In summary, the GK06 PP/PVDF Diaphragm Pump is designed to be efficient, reliable, and easy to use. With a high flow rate, maximum working pressure, and a range of other features, this pump is suitable for a wide variety of fluid transfer applications.


Welcome to choose our pvdf diaphragm pump!

Introducing the GK PVDF Diaphragm Pump – the ultimate solution for fluid transfer applications! As a leading manufacturer of air operated diaphragm pumps, electric diaphragm pumps, and piston pumps, GIN KAI TECHNOLOGY (SHANGHAI) CO., LTD (GK) has designed this pump with several features that set it apart from competitors.

Constructed with high-quality PVDF material, this diaphragm pump is built to handle even the most corrosive and aggressive fluids. With a wide range of applications in mind, GK offers 1/4 PVDF diaphragm pumps that are compact, lightweight, and easy to use.

The GK PVDF Diaphragm Pump is air operated, making it energy efficient and reliable. The air-operated double diaphragm pump (AODD) design ensures that the pump operates smoothly and efficiently, without the need for external power sources. This makes it ideal for remote locations or areas where electricity may not be available.

One of the unique features of the GK PVDF Diaphragm Pump is its up-down inlet and outlet design.This allows for easier installation and maintenance, as well as greater flexibility in terms of how the pump can be positioned within the fluid transfer system.

GK pumps are equipped with a silencer before shipment, ensuring quiet operation and minimizing noise pollution. This makes the pump ideal for use in areas where noise levels must be kept to a minimum.

In summary, the GK PVDF Diaphragm Pump is a versatile, reliable, and efficient solution for fluid transfer applications. With its high-quality PVDF material, air-operated double diaphragm design, up-down inlet and outlet, and quiet operation, this pump is the ideal choice for a wide range of applications. Whether you need PVDF pumps for chemical processing, wastewater treatment, or any other fluid transfer application, GK has you covered. If you are interested in our PVDF air operated diaphragm pumps, feel free to contact us!

Product Advantages

GK 1/4 Inch PVDF and Full Polypropylene Diaphragm Pump has small size to easy move,can be use in ink and paint industry.

Only PP material's body available.
